We have new and used 40' chassis available produced by a variety of industry manufacturers for loading dock high.

The length of this 40' chassis is fixed at 40'8" and used for the stevedoring and transportation of one 20 foot ISO containers.

Chassis come standard with spring suspension, 10x20 tires on 5 spoke wheels, ABS, and two speed landing legs.

Condition: New or Used

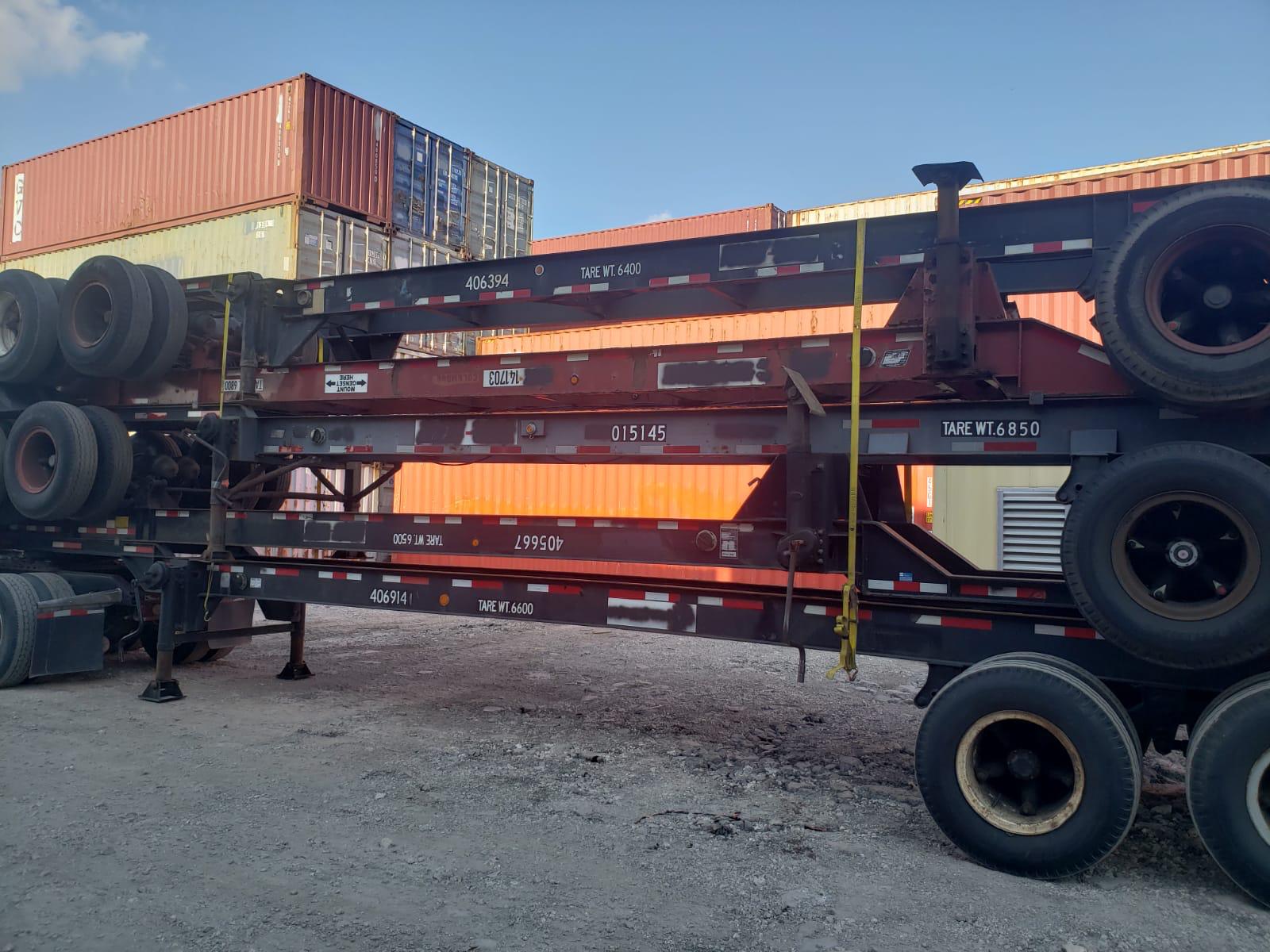

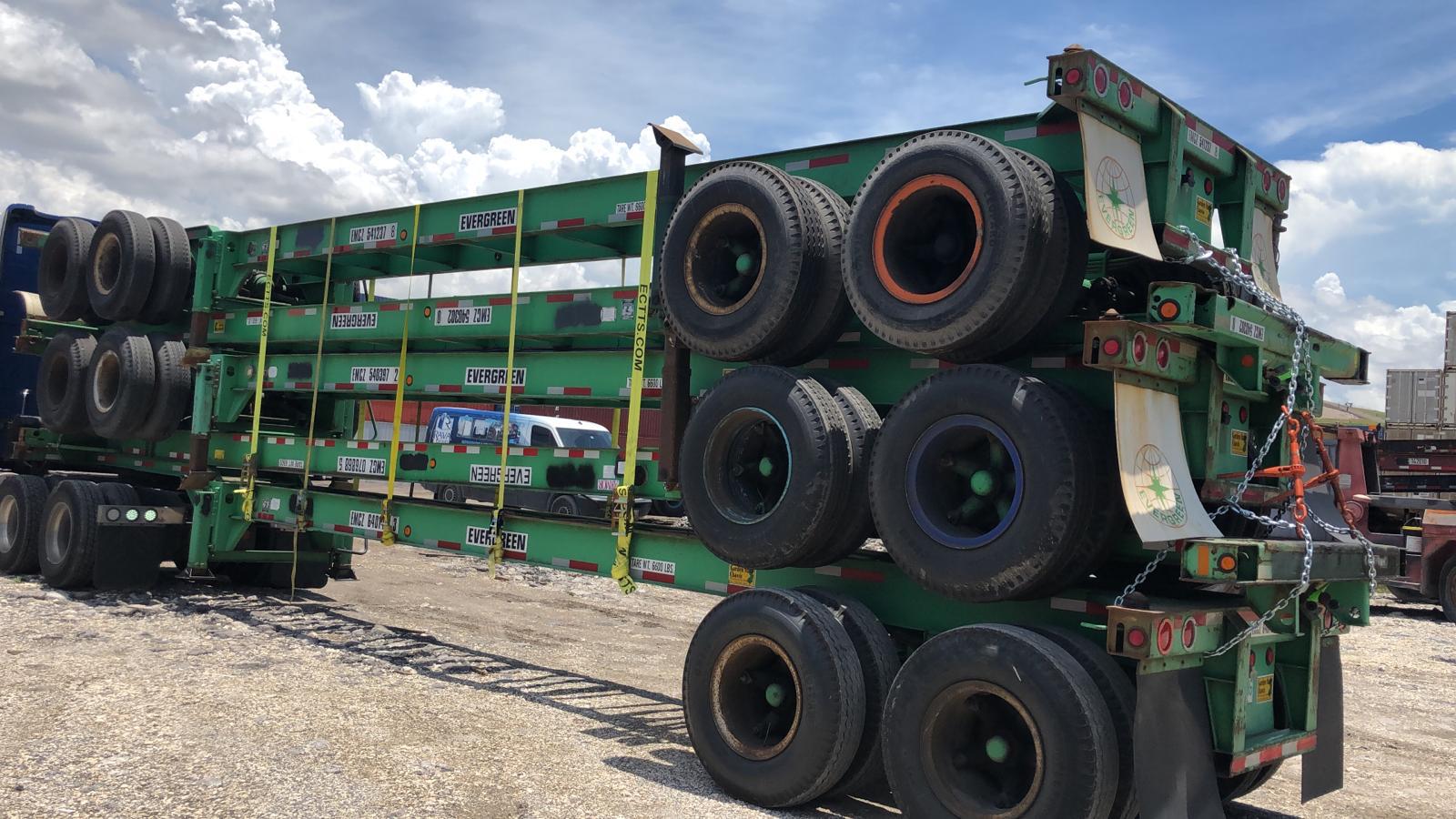

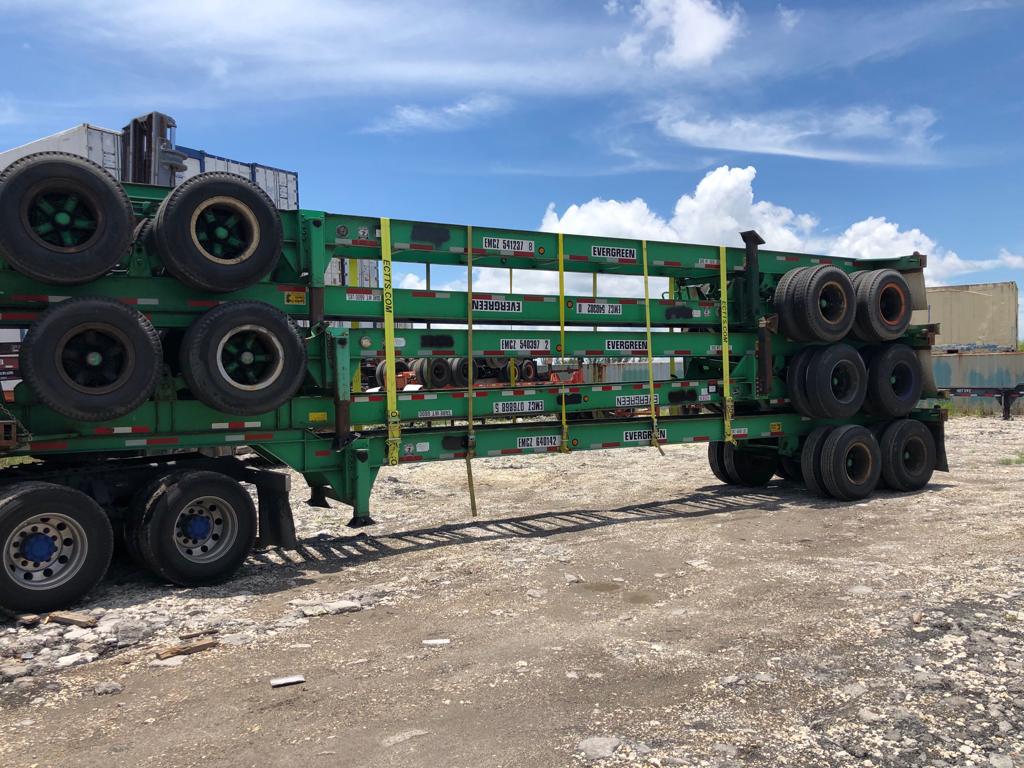

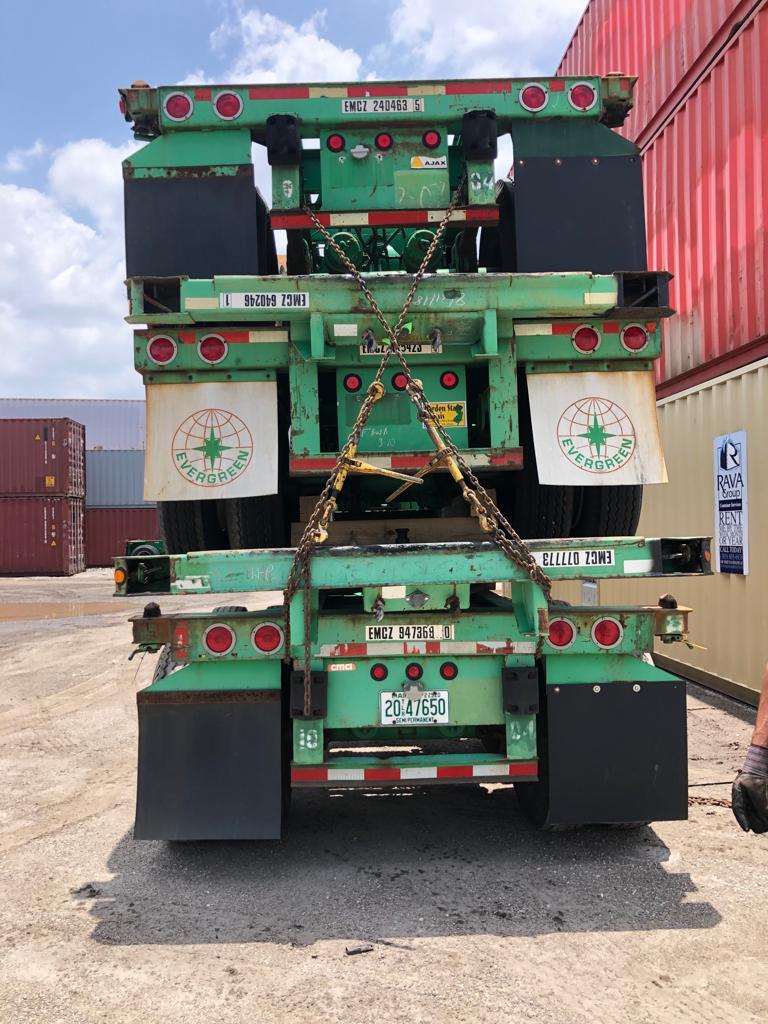

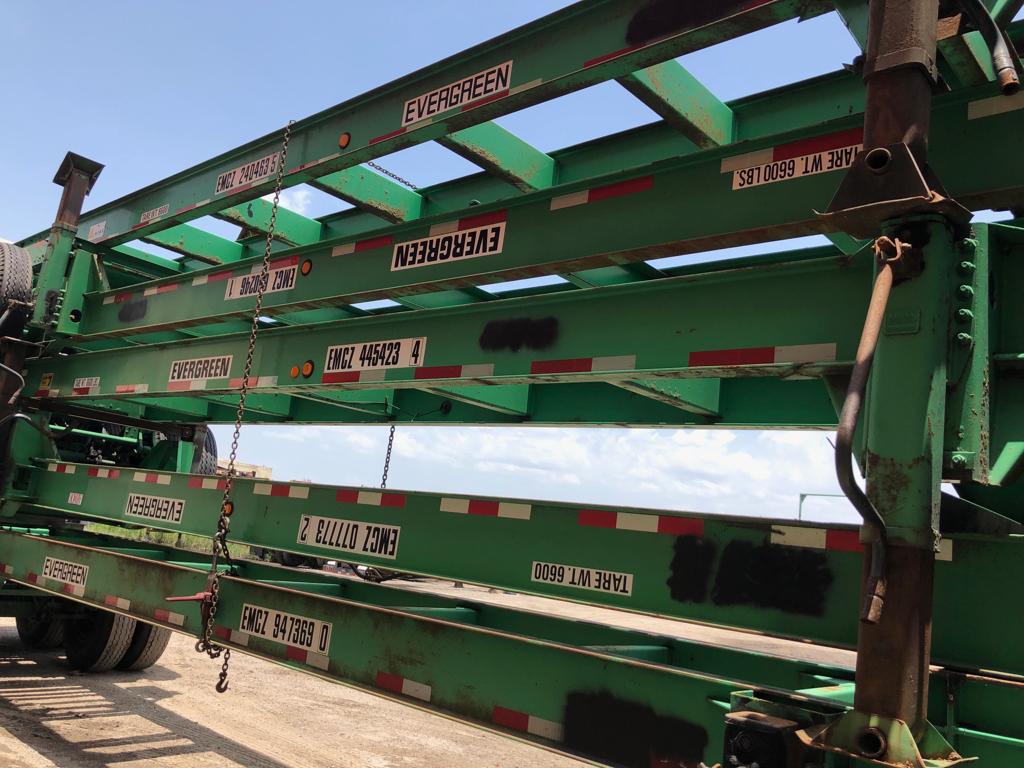

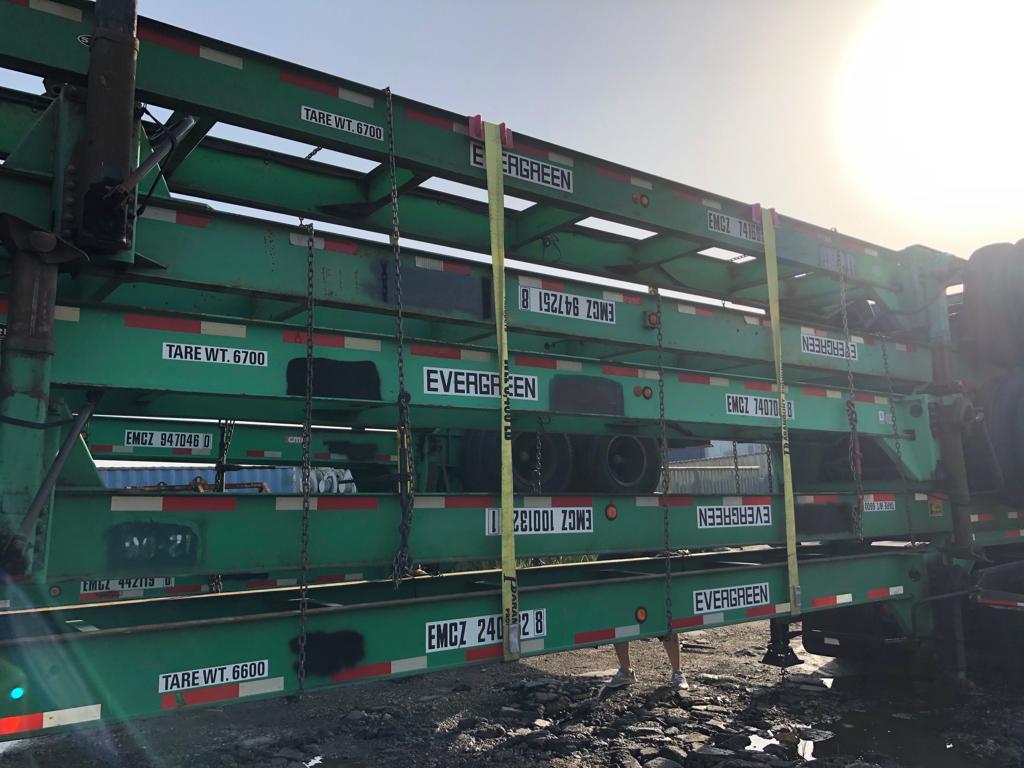

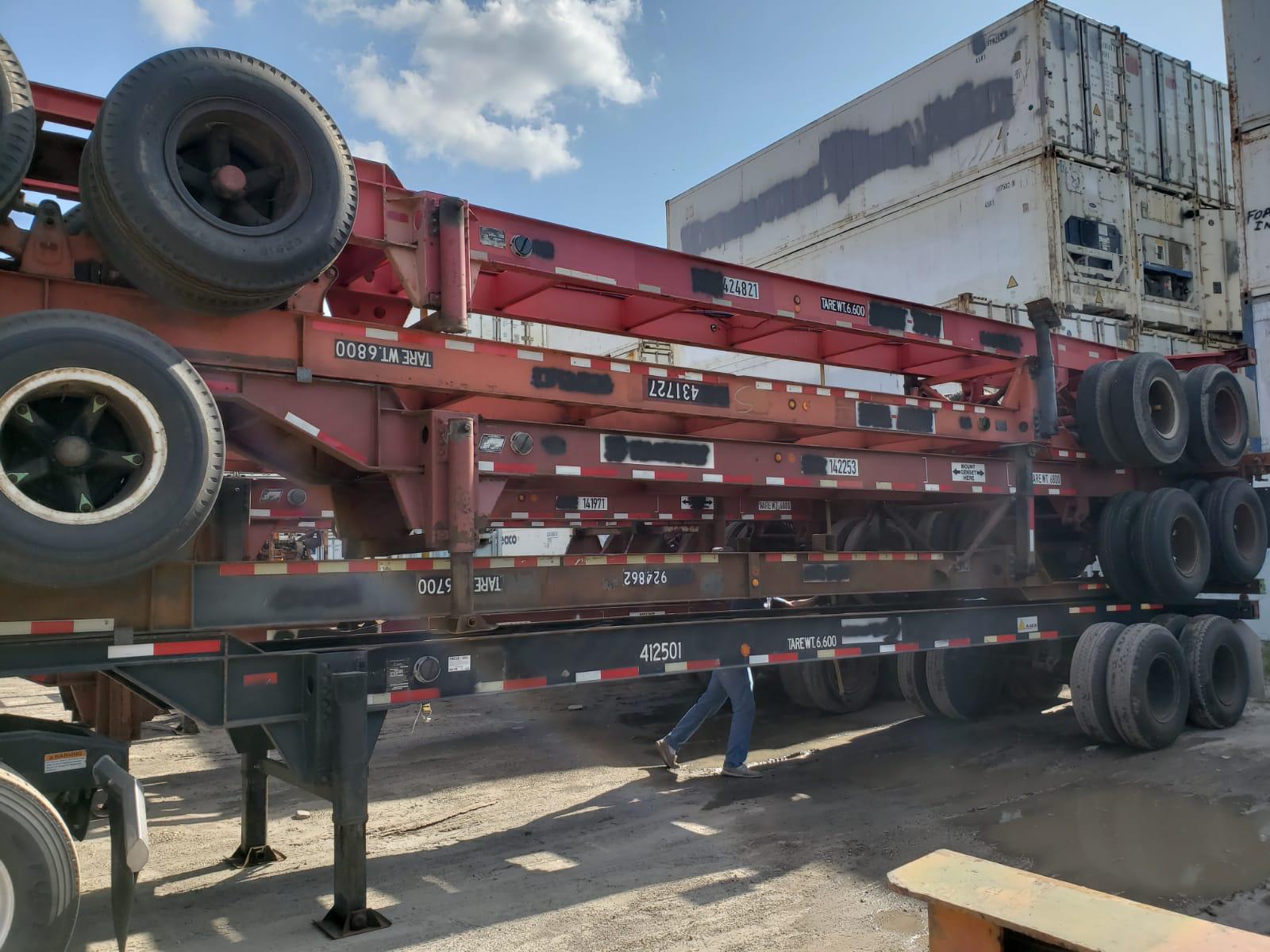

Gallery
Specifications

Overall Length:
40'8"

Overall Width:
96"

King Pin Location:
30" from rear face of front bolster

Coupler Height:
48"

Tare Weight:
6,600 lbs

Capacity:
Two hot rolled structural steel, ASTM-A572 Grade 50 beams. Wide flange 12" in depth 19 lbs/ft.

Landing Gear:
Two-speed mechanism and square leg tubing with 10" x 10" low profile sand shoes

Suspension:
Hutch with Three Leaf Springs (11,000 lb capacity each)

Axles (2):
5" diameter, 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters

Brake System:
Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers

Tires / Wheels:
10.00 x 20 tires on 5 spoke wheels

Electrical:
12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights

Twist Locks:
Cast steel to engage ISO corner castings

Paint:
Commercial sandblast, primer, and high quality paint system

Other:
Conspicuity Tape, Bumper, 24 x 30 Mud Flaps

Category:
Excellent.
