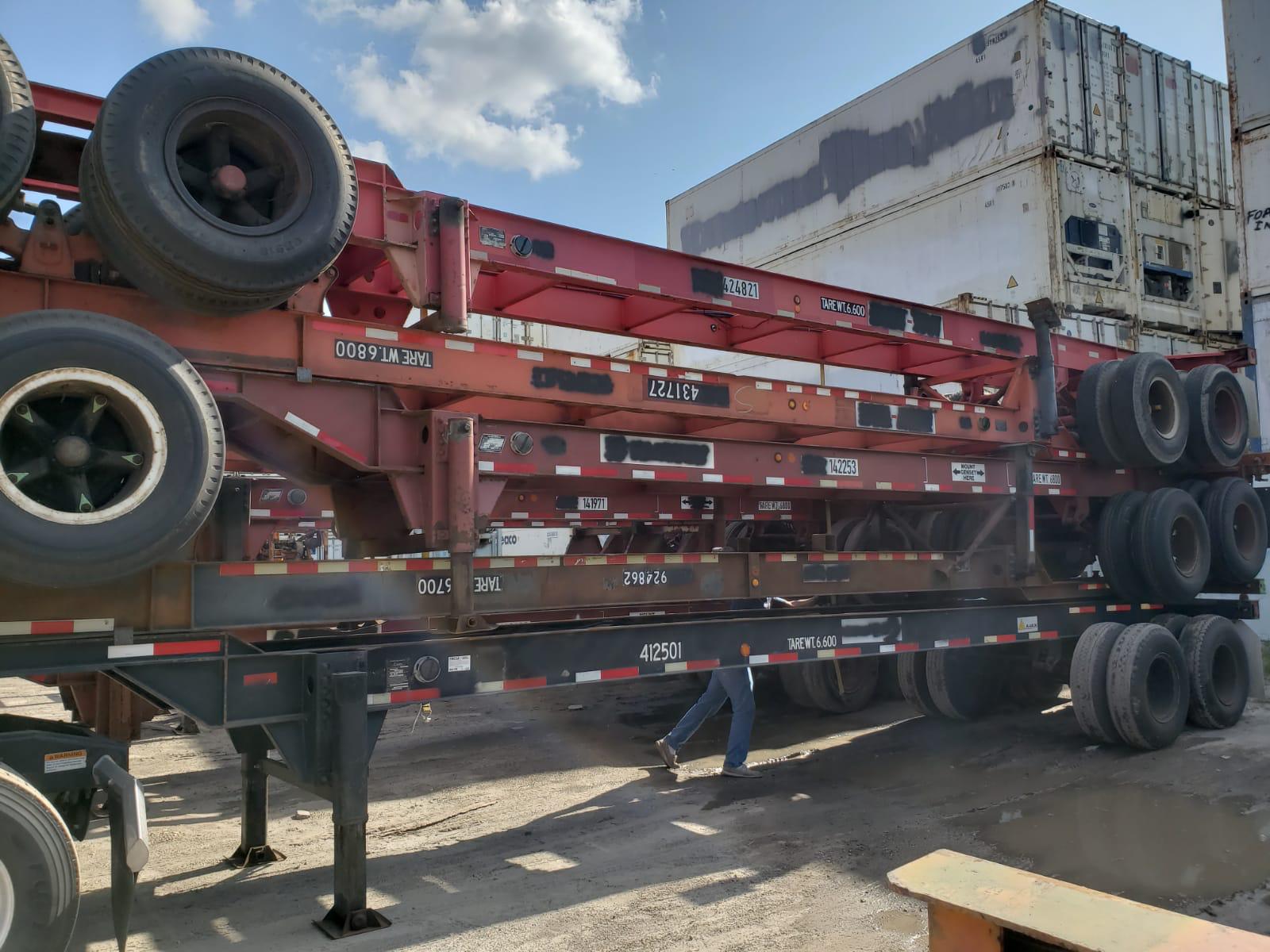

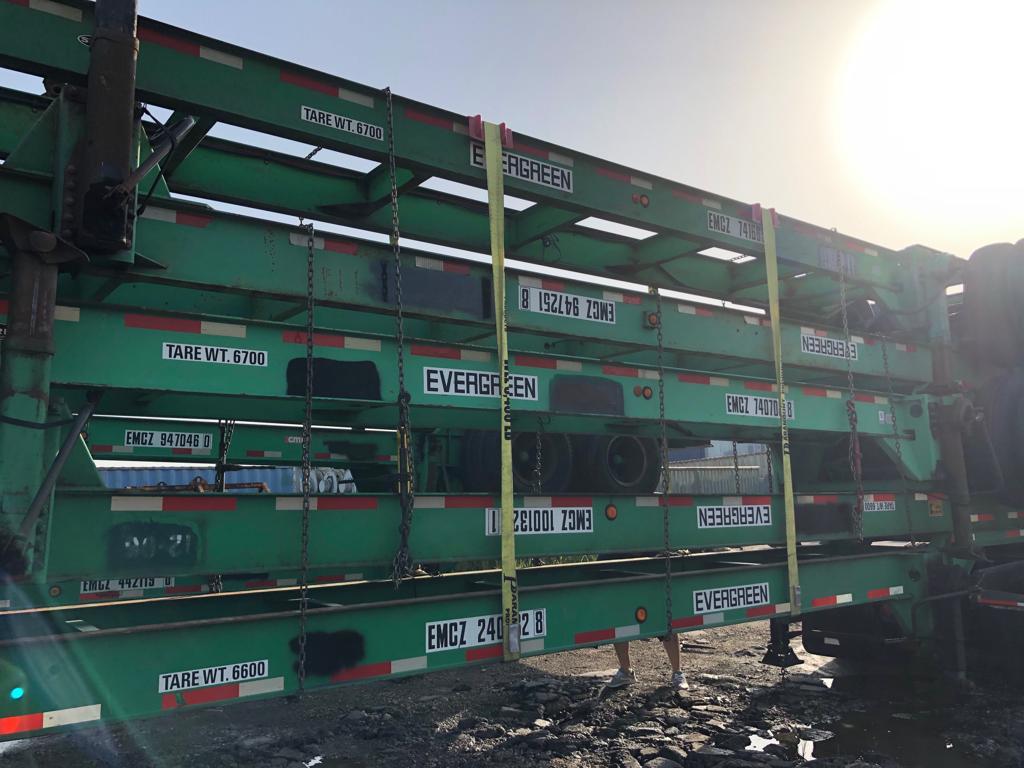

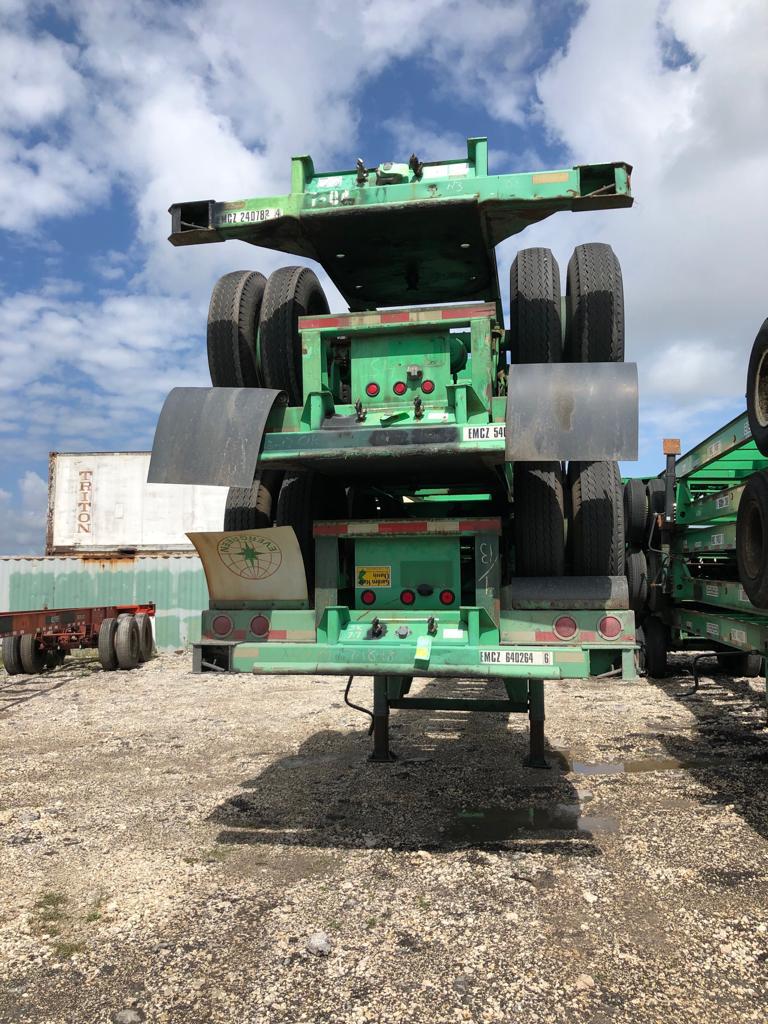

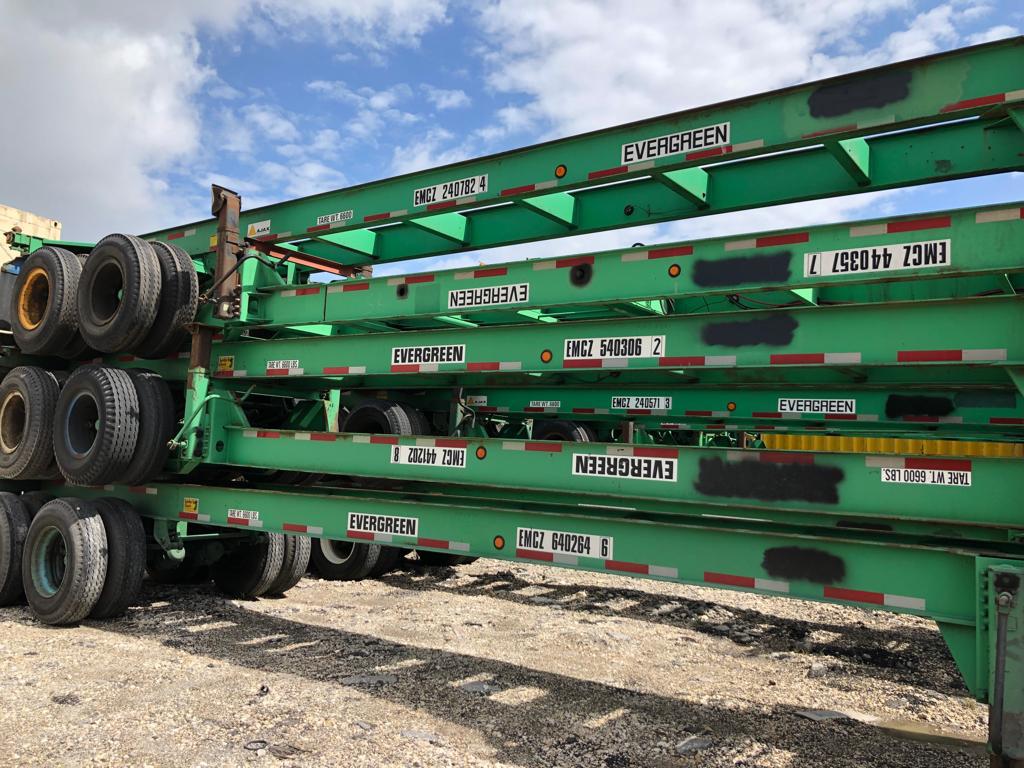

20′ Chassis

RAVA Group Containers Services has new and used 20′ chassis available for sale or rent. Our Chassis are produced by a variety of industry manufacturers for loading dock high requirements.

The length of this 20′ chassis at RAVA Group Containers Services is fixed at 23’6″ and used for the stevedoring and transportation of one 20 foot ISO containers.

Chassis come standard with spring suspension, 10×20 tires on 5 spoke wheels, ABS, and two speed landing legs. The chassis systems are in stock and ready for immediated delivery at our Miami, FL location.

Condition: New or Used

Overall Length:
23′-6″

Overall Width:
96″

King Pin Location:
18″ from front of chassis

Coupler Height:
48″

Tare Weight:
6,500 lbs

Capacity:
Two hot rolled structural steel, ASTM-A572 Grade 50 beams. Wide flange 12″ in depth 19 lbs/ft.

Landing Gear:
Two-speed mechanism and square leg tubing with 10″ x 10″ low profile sand-shoes

Suspension:
Hutch with Three Leaf Springs (11,000 lb capacity each)

Axles(2):
5″ diameter, 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters

Brake System:
Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers

Tires / Wheels:
10.00 x 20 tires on 5 spoke wheels

Electrical:
12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights

Twist Locks:
Cast steel to engage ISO corner castings

Paint:
Commercial sandblast, primer, and high quality paint system

Other:
Conspicuity Tape, Bumper, 24 x 30 Mud Flaps

Category:
Excellent
