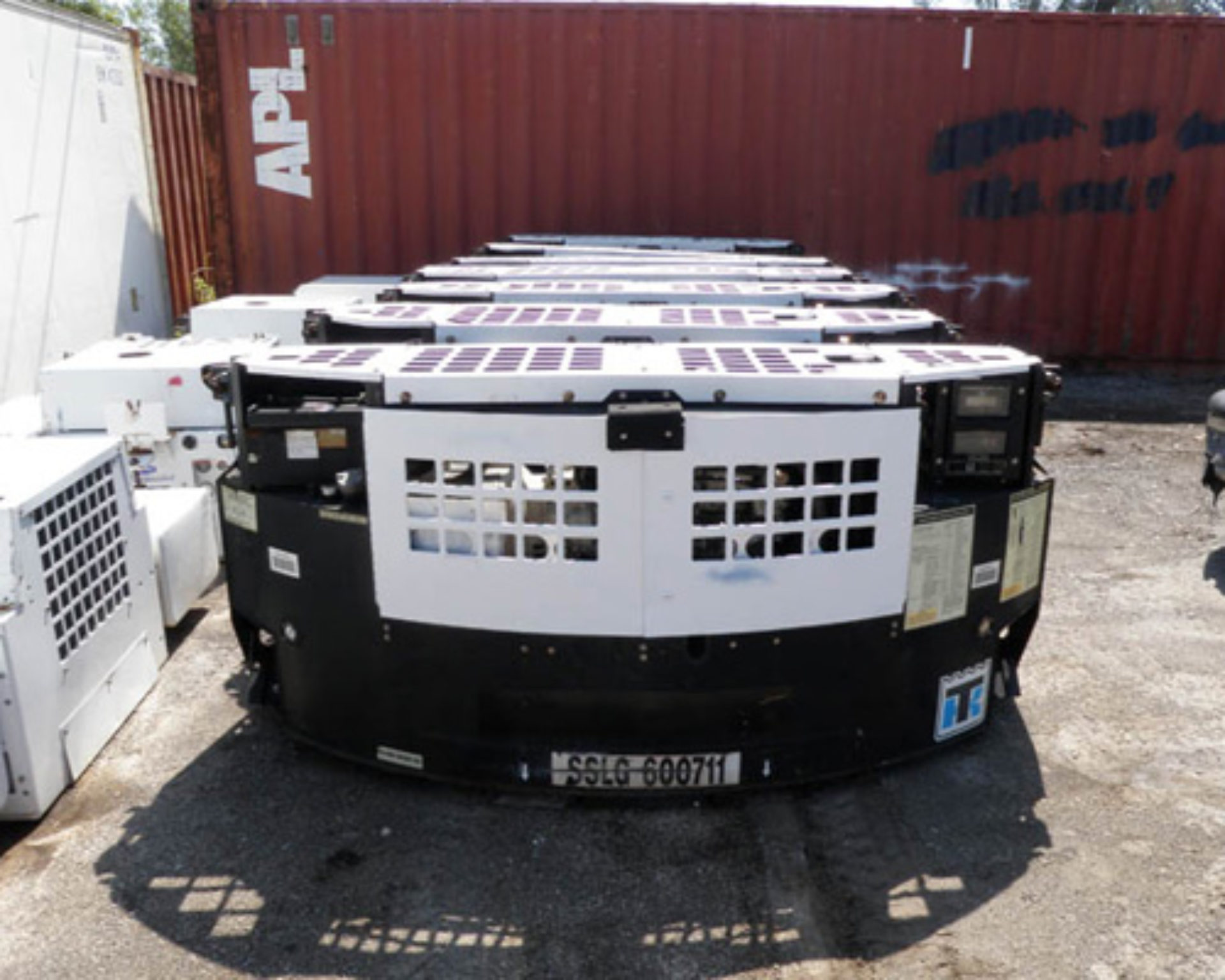

Gensets (Clip On)

We have new and used gensets (clip on) readily available that are produced by a variety of manufacturers including Thermoking, Taylor and Carrier.

Have Questions About RAVA Groups’ Reefer Specifications?

Contact one of our expert representatives for more information on our refrigerated container

• Place Container on Ground or Dock High
• Use Container Inside Location or Outdoors

Bodenheimer:
Fuel Tank – 120 gallon (454 liter) Fuel Tank
Engine – Deutz F3L 1011 Air Cooled Diesel Engine and Lima-MAC self regulated Reefer Alternator
Generator – 15 kW/ 230/460V/60Hz/3Ph Alternator. Can also be operated at 12 kW/380V/50Hz
Battery – 12V DC Maintenance Free
Controls/Control Box – Low mounted controls, waterproof control box
Safety Stop Controls – For low pressure, high water temperature
Switches – Preheat and start/run/off
Service Door – Large Services access door w/ self-locking quick release latch

Carrier:
Approximate Weight – 1675 lbs (760kg) less Fuel
Fuel Tank – 130-gal (492 liter) Fuel Tank
Engine – CT4-134DI 4 Cylinder water cooled 2.2 liter direct- injection diesel Engine
Generator – Nominal 15KW brush-less, Self regulated battery
Battery – 12V DC Maintenance Free
Controls/Control Box – Low mounted controls, waterproof control box
Safety Stop Controls – For low pressure, high water temperature
Switches – Preheat and start/run/off

Thermoking:
Approximate Weight – 818 kg (1804 lbs) total Weight, including Gen Set, oil, coolant, dry fuel tank, and battery
Fuel Tank – 125 gallon (473 liter) Fuel Tank
Engine – TK Diesel engine compliant with Interim Tier 4 2008 requirements
Generator – 460/230 Vac, 3 Phase, 60Hz
Battery – 12V, 925 CCA at 18°C (0°F)
Controls/Control Box – SG+ microprocessor controller with auto restart feature, advanced diagnostics, and automatic preheating of engine
Safety Stop Controls – For low pressure, high water temperature
Switches – Preheat and start/run/off
